1.Night Fishing Probe 2.Turbid Water Probe 3.Ice Fishing Probe

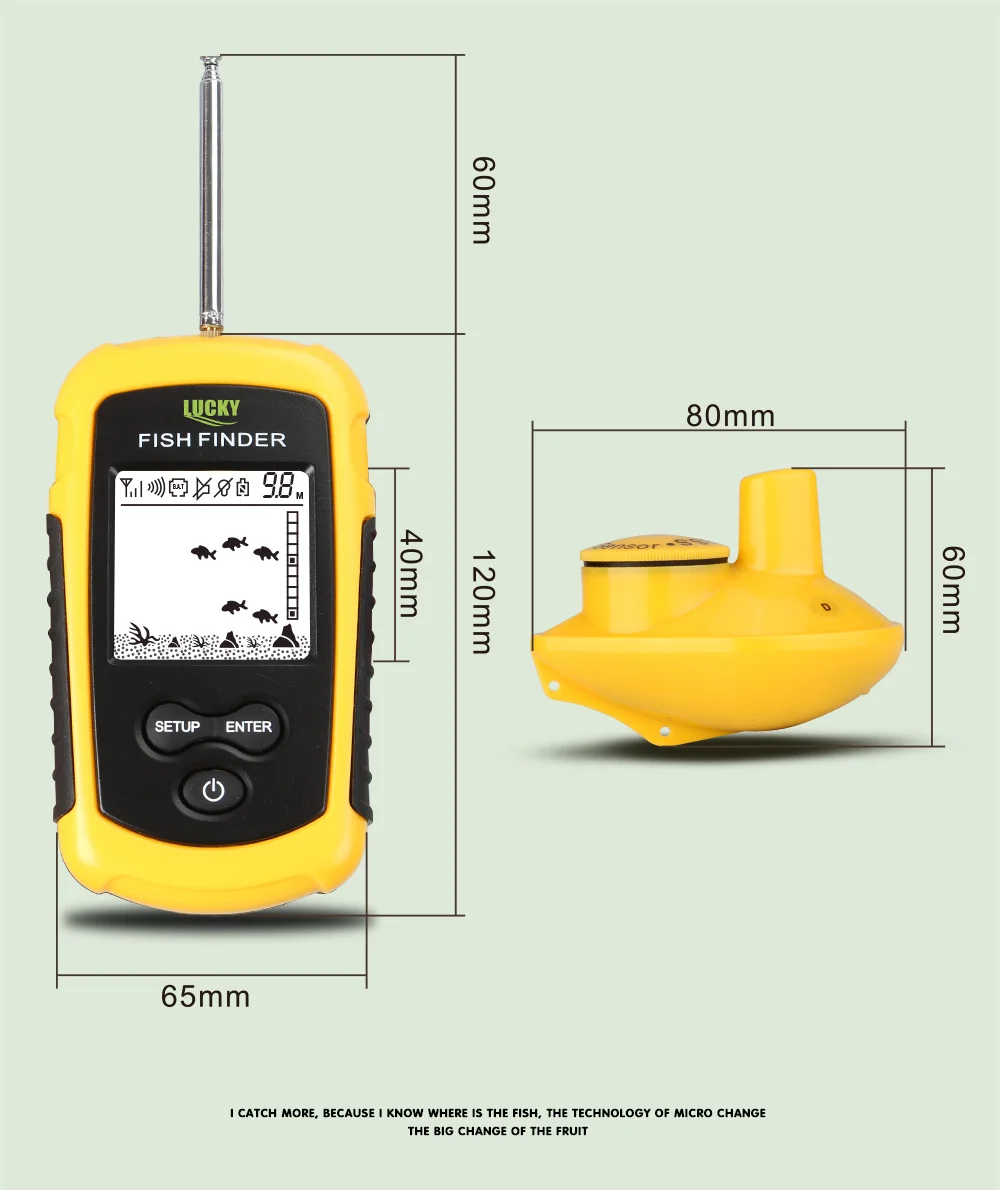

PRODUCT SPECIFICATION OF FFCW1108-1:
1) Display: 2inch TN/ANTI-UV LCD
2 )Back lighting: White LED
3) Depth Capability: 130feet(40m)
4) Wireless Sonar: 90 degrees beam angle in 125Khz
5) Wireless operational Range: 400feet(120m)
6) Power Requirement: 4xAAA alkaline batteries
7) Wireless Sensor battery reauirement: one replaceable CR2032 battery
8) Waterproof design: level-4 (spray-water-proof)
9) Show water depth, fish location, and bottom grass & rock
10) User selectable sensitivity , depth units, and fish alarm setting
11) Wireless Sensor could shut down when it is out of the water
12) Operational Temperature: 14degF to 122degF(-10degC to 50degC)
The wireless sensor can-anti-clutter system automatically filter clutter
Fish alarm function can attetion the angler fishing condition in time.
The sonar can detect water up to 100m,and beam angle is 90 degree in 125khz.
This item detecting water depth is 40M,and wirless range is 120M.
HOW TO USE LUCKY FISH FINDER?
1.tie it to the end of fishing line and cast it into the water 2.wireless sonar sensor send sound waves 3.returned echoes transmitted to the fish finder
1. signal indicator 6.battery strength indicator 2. Sensitivity indicator 7.water depth indicator 3. Battery save on/off 8.backlight on/off 4. Fish alarm on/off 9.fish depth indicator 5. Left arrow 10.right arrow 11.power on/off
1.Seal Cover 2.Seal Ring 3.Battery Place 4.Sonar Detection 5.Hole tied to fishing line
Fish line:300M—10LB—0.25MM Fish Lure：P2
1.Kindly remind that FF 718 FFC1108-1 has only wired mode, and you cannot match the sensor and monitor randomly.
2.Use fish finder in smooth and hard place (like water tank, swimming pool, water bucket, or fish pond) will cause repeatedly sonar reception, or the the detection can be inaccurate. Please use fish finder in outdoor deep water.
3.The monitor cannot display the size of the fish.
